Advanced Features
- Supports Port mirroring, Bandwidth Control, VLAN, Trunk, QOS, MAC Address Filter, IGMP and Stride VLAN
Plug and Play
- Supports Auto-Negotiation RJ45 ports (Auto MDI/ MDIX)
Store-and-Forward switching method
- Eliminates bad data packets from the network
Rack Mountable Design
- Robust metal frame, can be placed on a desktop and or mounted on a 19” rack mount
Excellent Performance
- Supports Full/ Half duplex transfer mode for 10/100Mbps
Specifications
|
Number of Ports
|
- 16 x 10/100Mbps Auto MDI/MDIX, Auto Negotiation ports
|
|
Cable Type
|
- 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
- 100Base-Tx: UTP category 5, 5e cable (maximum 100m)
|
|
LED Indicator
|
- 10/100M: Link/Act (Green)
- Other: Power (Green)
|
|
Switching Capacity
|
|
|
MAC Address List
|
|
|
Frame Filtering & Forward Rate
|
- 10Mbps: 14880PPS; 100Mbps: 148800PPS
|
|
Power Supply
|
- Input: 100-240VAC 50-60Hz 0.3A
|
|
Environment
|
- Operating Temperature: 0 °C ~ 40°C
- Storage Temperature: -40°C ~ 70°C
- Operating Humidity: 10%~90% , non-condensing
- Storage Humidity: 5% ~ 90% , non-condensing
|
|
Dimensions
|
440 x 140 x 44mm
|
|
Weight
|
1.37kg
|
|
Package Content
|
Included

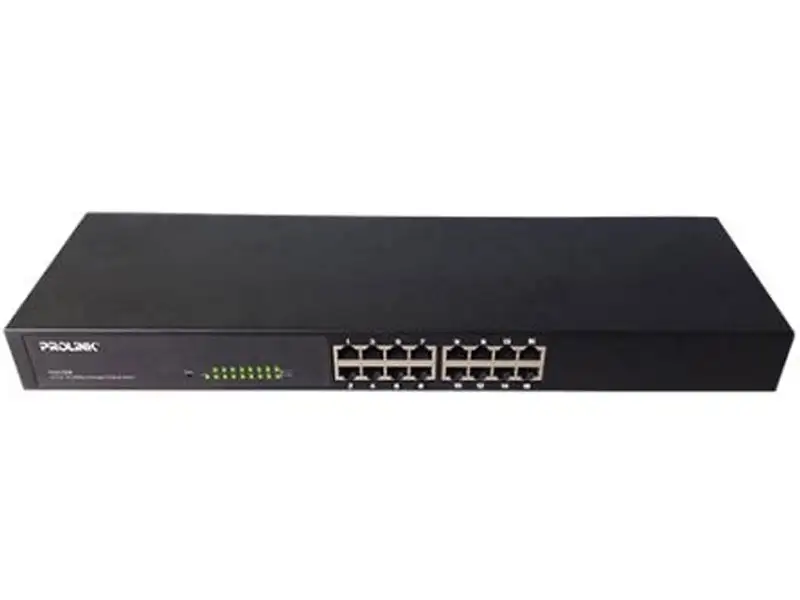

- 1 x PROLiNK PCSE1650M 16-Port 10/100Mbps Managed Ethernet Switch
- 1 x Power Cord
- 2 x Rack-mount Bracket
- 8 x Screw
- 4 x Rubber Feet
- 1 x User Manual
|
)
