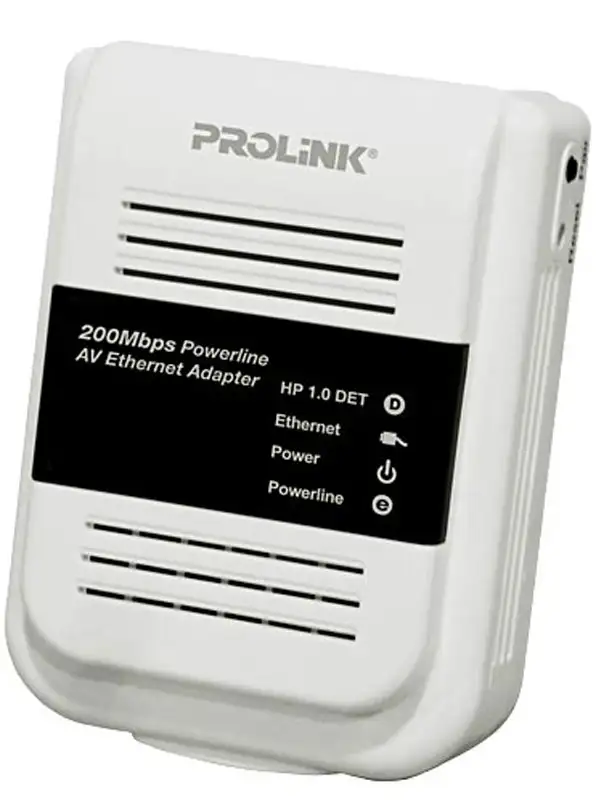

Prolink (2set) Powerline AV Ethernet 200Mbps (PPL1201)

HomePlug AV

• High speed data transfer rate up to 200Mbps

• HomePlug AV standard compliant

• Co-existence with HomePlug 1.0 nodes

• High-speed HomePlug adapter with Ethernet interface

• Supports IGMP managed multicast IP transmission

• OFDM techniques for high data reliability in noisy media conditions

• Support TDMA and CSMA/CA channel-access schemes for optimum MAC performance

• Intelligent channel adaptation maximizes throughput under harsh channel conditions

• Advanced Turbo Code Forward Error Correction

• Supports 1024 / 256 / 64 / 16 / 8-QAM, QPSK, BPSK and ROBO modulation schemes

• 128-bit AES Link Encryption with key management for secure powerline communications

• Integrated Quality of Service (QoS) features

• Flash interface for fast access to configuration parameters

• Transmission range up to 300m over household power supply grid

• Ethernet specifications IEEE 802.3u compliant

• Support Auto MDI / MDIX feature

Hardware Interface

• One Power Line Interface

• One 10/100Mbps Ethernet Interface

• Status LED Indicator

Physical / Environmental

• Temperature: 0 ~ 60°C

• Humidity: 10% ~ 90% RH

Antenna Gain

• Internal / External (optional)

• 2dbi

Approvals

• FCC Part 15 , CE and EN60950 (LVD)

• RoHS / WEEE compliance

Dimensions

102(L) × 74(W) × 34(H) mm

Weight

165g (with battery)
