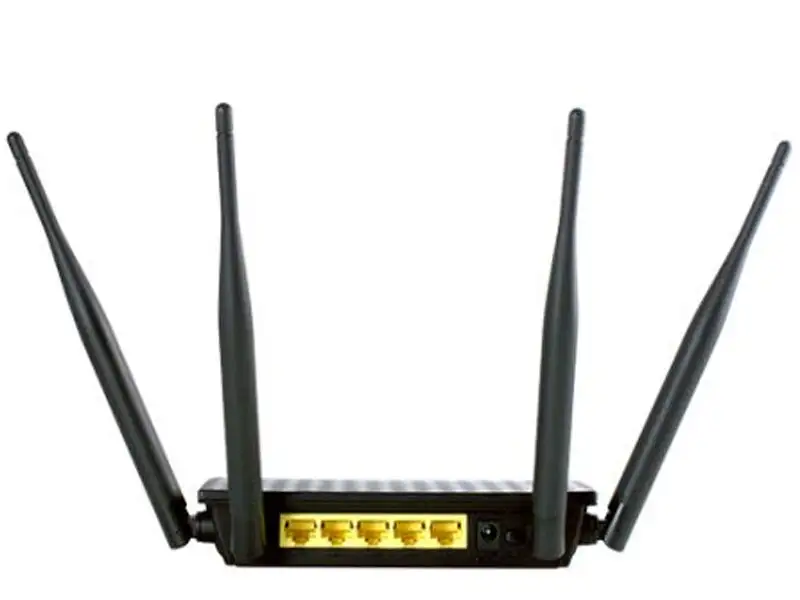

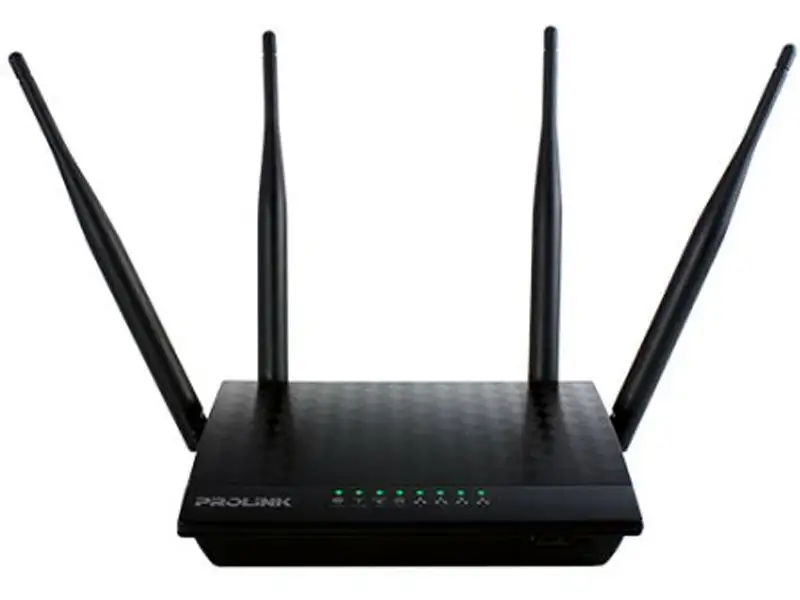

Prolink Wireless AC Dual-Band Gigabit Router (PRC3801)

Wi-Fi Standard

• Concurrent Dual-Band: IEEE 802.11 b/g/n (2.4GHz)
  IEEE 802.11 a/n/ac (5GHz)

RF Output Power

• 2.4GHz: Max 20dBm; 5GHz : Max 20 dBm

Date Rate

• 300Mbps (2.4GHz); 867Mbps (5GHz)

Wireless Mode

• Router/AP/Repeater mode

Security

• 64/128-bit WEP, WPA-PSK/WPA2-PSK MAC Address Filtering; Wi-Fi Protected Setup (WPS)

Firewall

• DoS, IP/MAC Filtering, DMZ

Interface

• WAN x 1 : 10/100/1000Mbps Auto MDI/MDIX Ethernet Port (RJ45)
• LAN x 4 : 10/100/1000Mbps Auto MDI/MDIX Ethernet Port (RJ45)
• USB2.0 x 1 (Optional)

Buttons

• Power, WPS, WLAN, Reset

Antenna

• 4 x Fixed High-Gain Antenna

Power Adapter

• 12VDC/1A

Power Consumption

• 10W (Maximum)

Dimension

• 152 x 120x 27 mm (product only)
• 238 x 55 x 230 mm (with box)

Weight

• 255g (product only)
• 586g (with box)
